Havana S

Result of years of development, the Havana S is the Flagship model. A no-compromise Racing harness with a competition pedigree. The longest, most supportive carbon back plate of all the Rotor harnesses and machined aluminium slider track with sealed-bearings supporting the main riser. Havana S provides very high performance while maintaining fundamental characteristics such as comfort, lightness and easy landing.

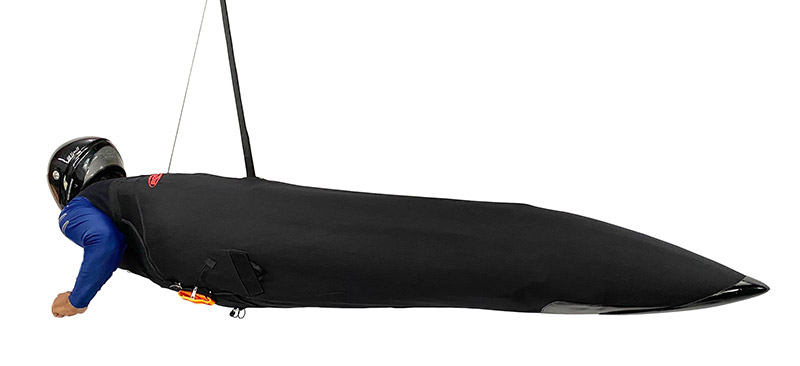

Havana S Rotor
Havana S Rotor lateral

Properties

  • Built to last

    High quality materials
  • Lightweight

    8 kg including Rucksack
  • Easy to landing

    The longest slider track o all harnesses
  • Low drag

    known for aerodynamic design
  • Confortable

    Tailor-made harness and “kick ass” system that allows you to change the flying angle precisely, with just the movement of the hip.
  • SPACIOUS

    Features 10 + storage compartments including camelback and hookknife pocket

Features

  • FIBERGLASS CONE WITH INTERNAL COMPARTMENT
  • REPLACEABLE SKID
  • “KICK-ASS” SYSTEM
  • TOWING LOOPS
  • CAMEL- BACK POCKET

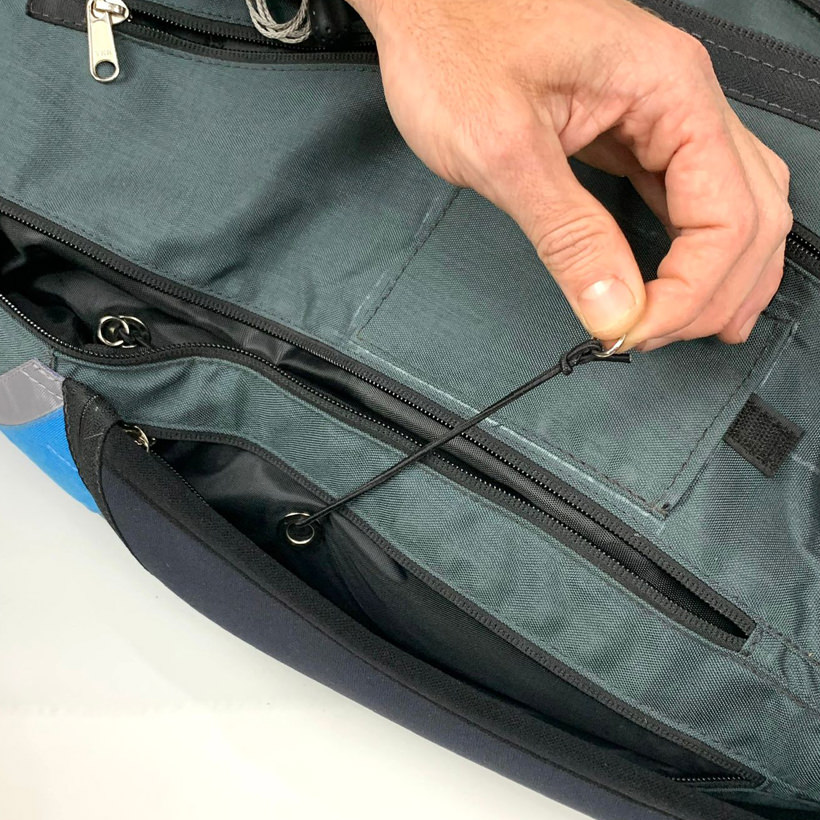

  • 4 EXTERNAL POCKETS WITH SECURITY RUBBER

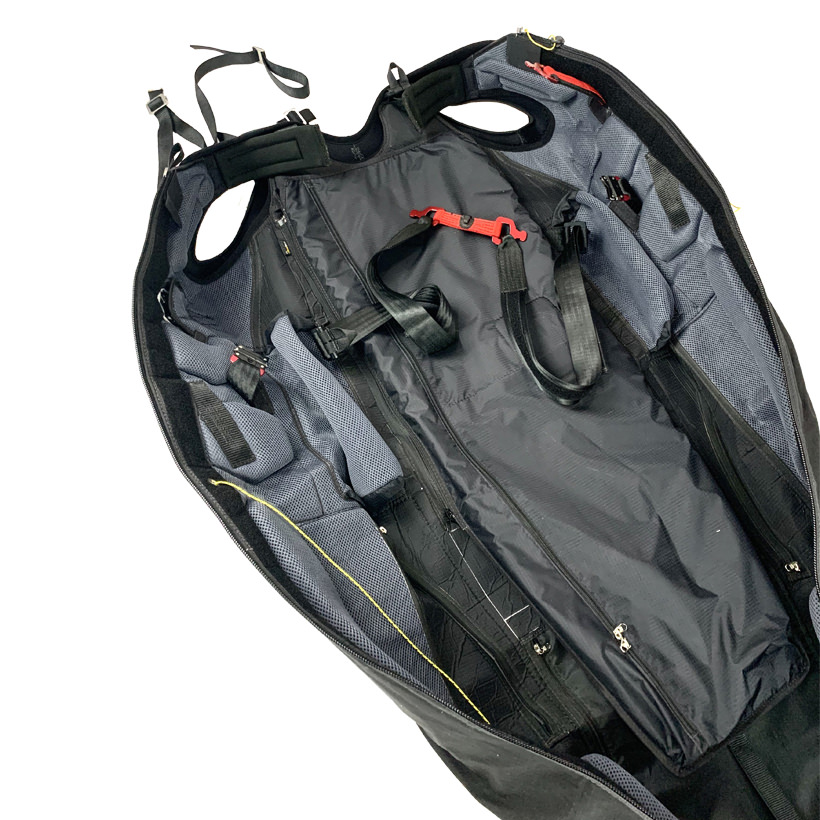

  • 4 LARGE INTERNAL POCKETS
  • REMOVABLE CENTRAL BAG

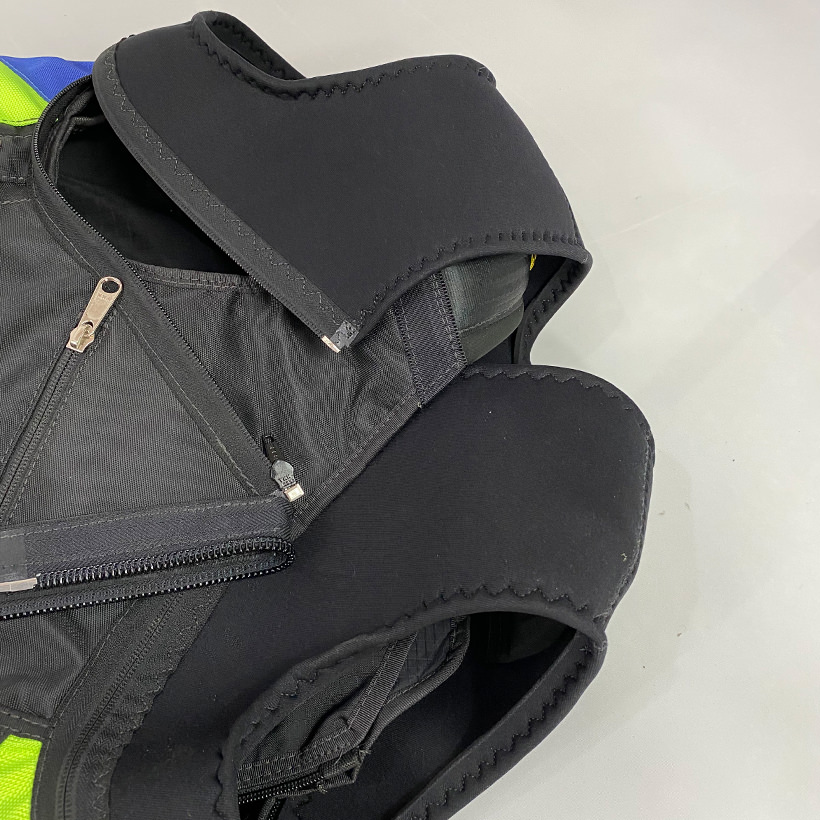

  • REPLACEABLE NEOPRENE COVER
  • LONGER MAIN ZIPPER

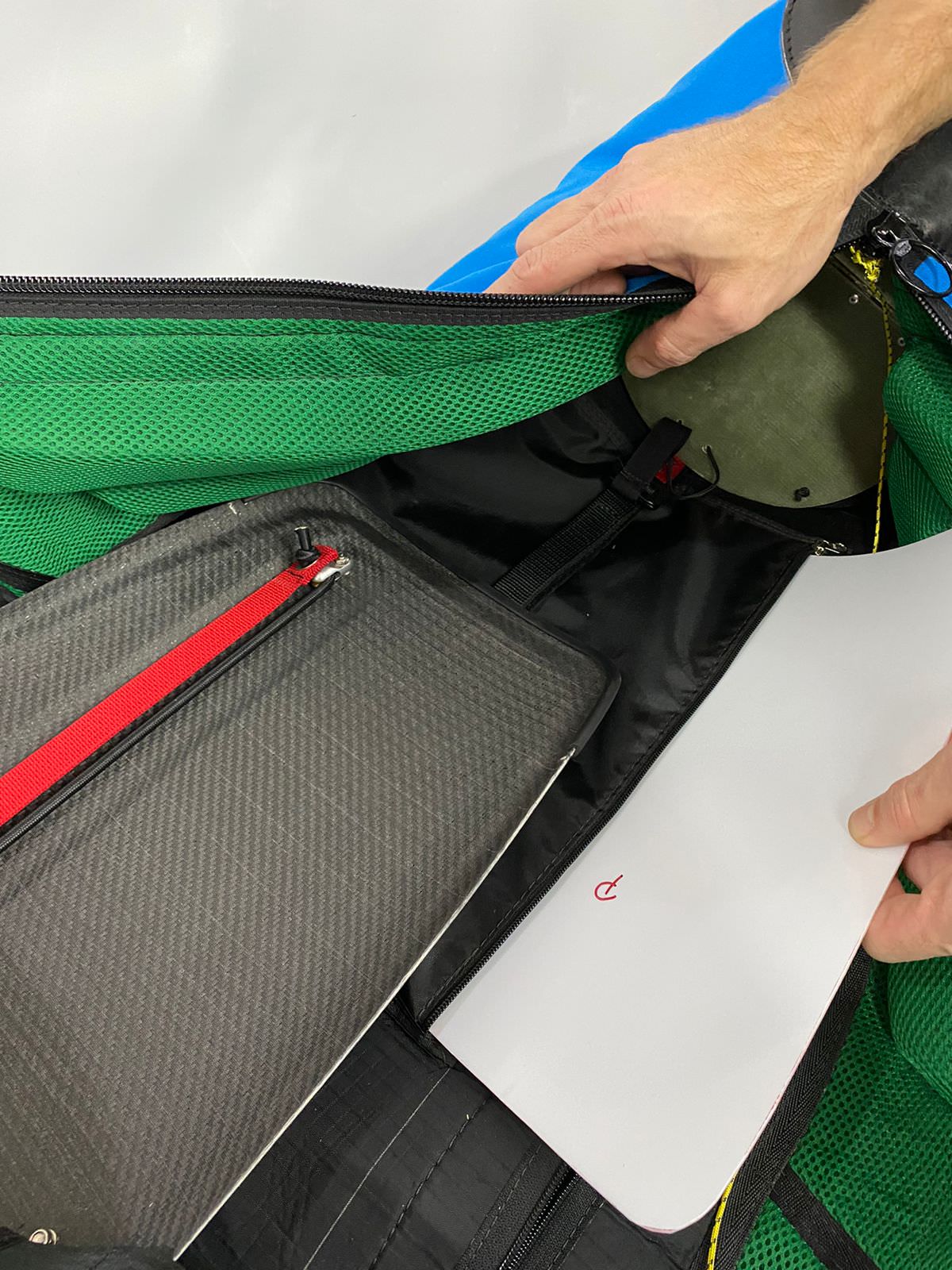

  • POCKET FOR RIGID PLASTIC
  • BUCKLE SYSTEM

INNOVATIONS AND DIFFERENTIALS

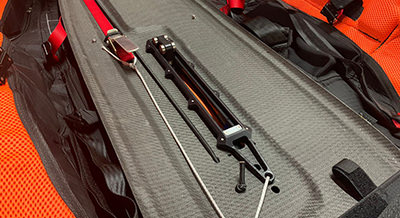

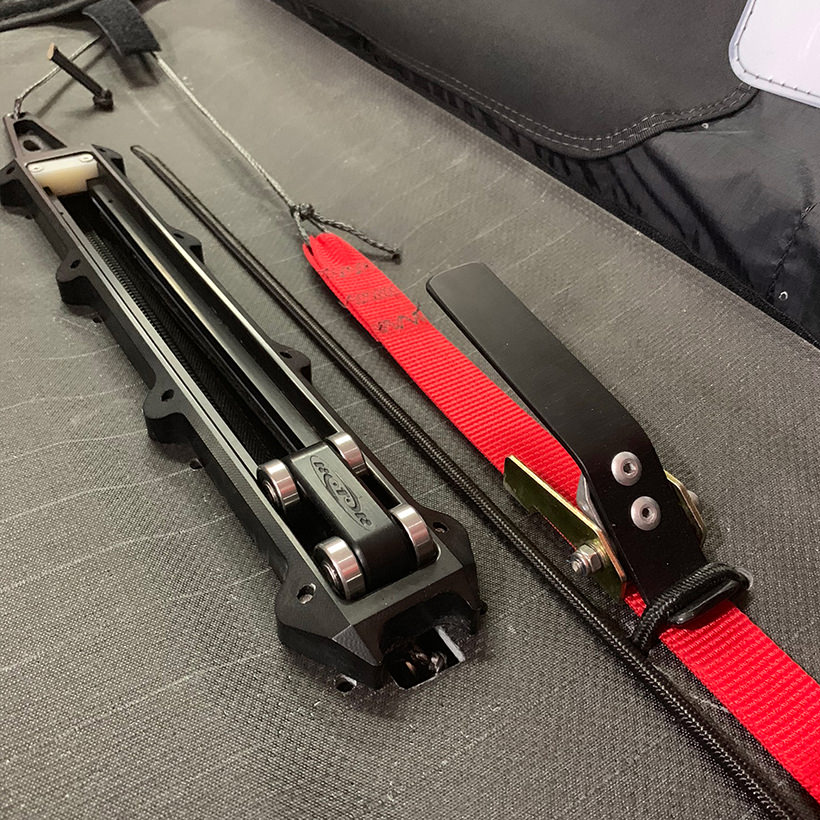

Machined alluminium slider track with sealed-bearing support main riser:

The bearings stay locked in four cavities machined in the slider, keeping the pilot in the perfect CG, as a consequence the “Kick ass” system works with greater precision allowing the pilot to change his angulation during flight. The 25 cm slider and the bearings slide over the aluminum base allow for quick and accurate position angle for landing.

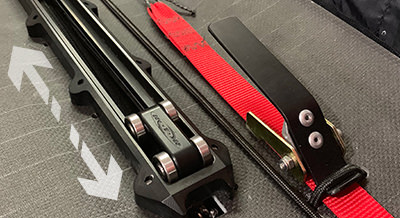

Alluminium Slide with center of gravity adjustment:

The only harness on the market that allows you to change the equipment's center of gravity, there are three adjustment options that allow you to find your best positioning.

Carbon fiber Back plate

Anatomical back plate, 5 cm longer made in an Vaccum Infusion process. Because it is longer, it offers more comfort, distributing the pilot's weight evenly, and because it is ergometric, it makes the pilot's "leading edge" more aerodynamic. The new manufacturing process through Vaccum infusion makes it stronger and lighter.

Materiais utilizados

MATERIALS

  • Outer skin: Cordura fabric (link)
  • Inner fabrics: Nylon 250 D Rip stop; Nylon 095 D Rip stop; 3D mesh
  • 3mm neoprene finishes
  • YKK zippers: 10; 08; 05
  • 3mm dyneema for pitch rope; 2mm polyester rope for opening the main zipper.

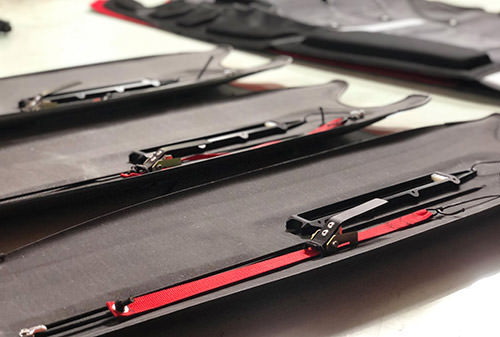

Fiberglass parts

  • Unique anatomical carbon fiber back plate, produced through the vacuum infusion system combining lightness and strength

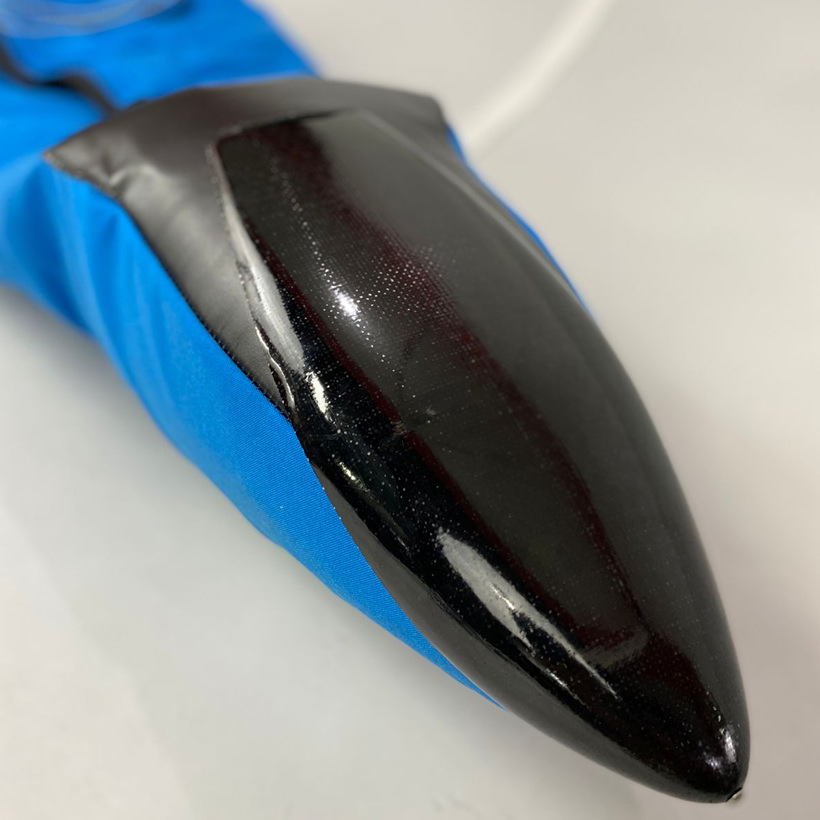

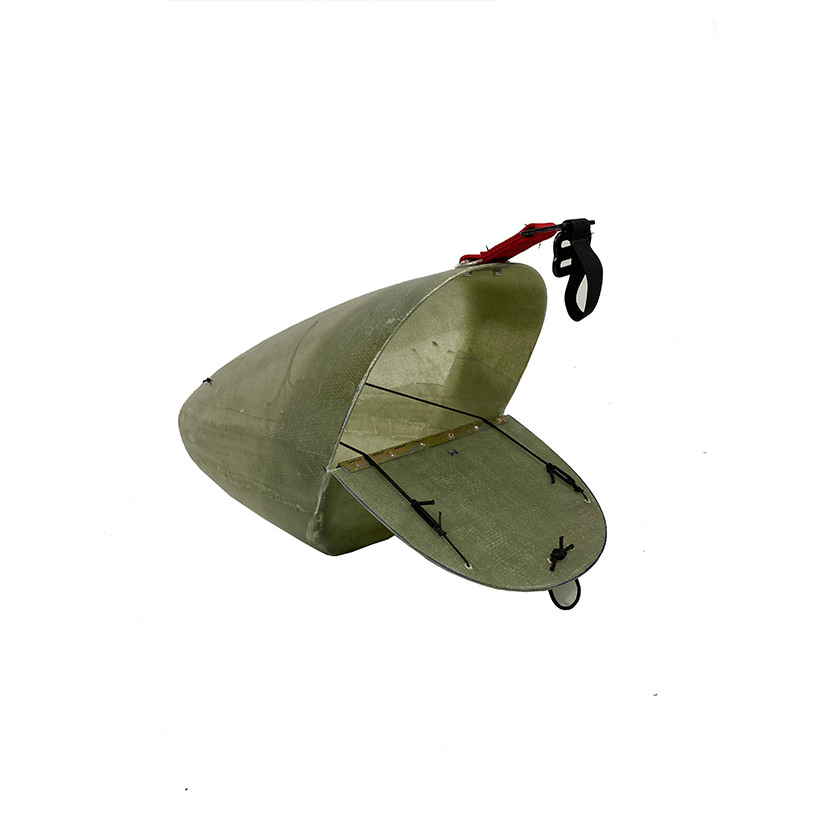

  • Fiberglass cone with internal compartment, available in 3 sizes (S;M;L)
  • Fiberglass replaceable skid
Partes de Fibra
Hardware rotor

Hardware

  • Aluminum 7075 T6 quick lock buckles (APCO AVIATION)
  • Aluminium 7075 T6 Black anodized slider

OPTIONAL

  • Replacement velcro zipper
  • batwing neoprene
  • car towing loops
  • Drag parachute pocket
  • Extra inner pocket
  • 2 containers for parachutes
  • Water ballast (4L)
